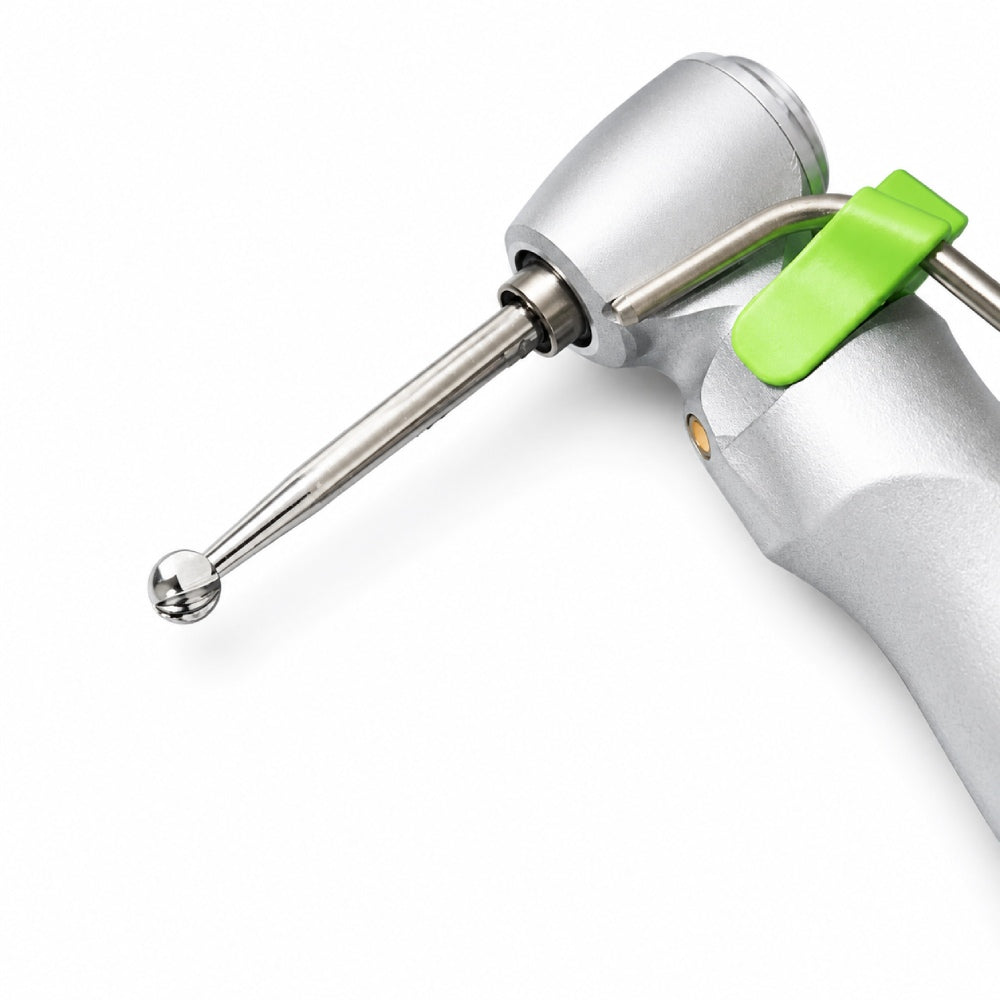

The Implant Bone Contouring Round Ball Bur is a commonly used surgical bur in implant dentistry, oral surgery, and periodontal procedures. Designed for precise bone reshaping, ridge contouring, and osteoplasty, it allows clinicians to efficiently smooth irregular bone surfaces and prepare ideal implant sites.
Manufactured from high-hardness surgical stainless steel, this bur provides excellent cutting performance, durability, and corrosion resistance, making it a reliable instrument for daily clinical use.
Key Features
High-Strength Stainless Steel Construction
Unlike many conventional tungsten carbide round burs that utilize a welded head-and-shank design, our stainless steel round bur is manufactured as a one-piece integrated structure. Benefits include:
Reduced risk of bur fracture during surgery
Improved structural strength and durability
Enhanced corrosion resistance after special heat treatment
Excellent sharpness and wear resistance

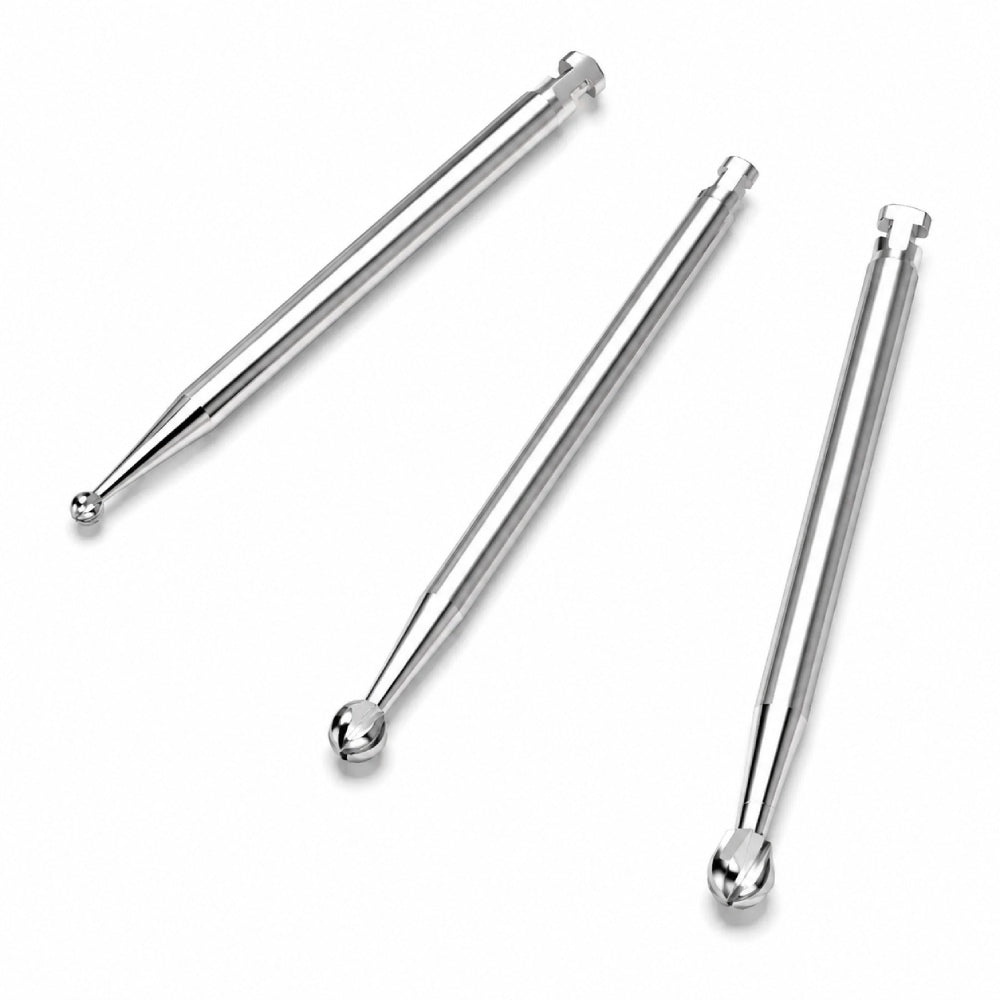

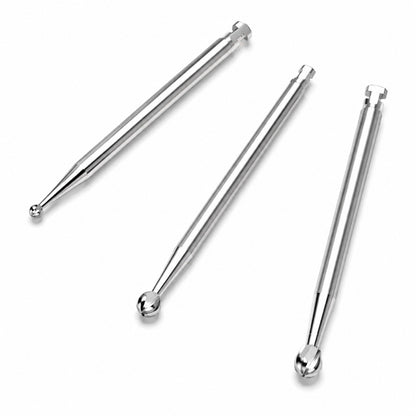

Multiple Sizes for Different Clinical Needs
Head Diameter Options
Ø3.1 mm
Ø3.5 mm
Ø4.0 mm
Ø4.5 mm
Ø5.0 mm
Overall Length Options
34 mm (Standard Length)
26 mm (Short Length)
The 34 mm version is the most commonly used configuration for routine implant surgery. The 26 mm version is especially useful in posterior regions where mouth opening is limited.
Technical Specifications
Specification
Available Options
Product Type
Bone Contouring Round Ball Bur
Material
Surgical Stainless Steel
Head Diameter
Ø3.1 / Ø3.5 / Ø4.0 / Ø4.5 / Ø5.0 mm
Overall Length
26 mm / 34 mm
Application
Implant Surgery, Bone Contouring, Ridge Reduction, Osteoplasty
Sterilization
Autoclavable
Clinical Applications
Bone Surface Flattening Create a smooth and even bone surface before implant osteotomy preparation.
Ridge Contouring Reduce sharp bony edges and reshape irregular alveolar ridges for improved surgical outcomes.
Implant Site Preparation Prepare and refine the crestal bone surface before implant placement.
Osteoplasty and Alveoloplasty Suitable for contouring bone during oral and maxillofacial surgery procedures.
Periodontal Surgery Smooth irregular alveolar bone surfaces following periodontal treatment.
Surgical Marking and Positioning Useful for marking and locating surgical sites during implant procedures.
Clinical Tips

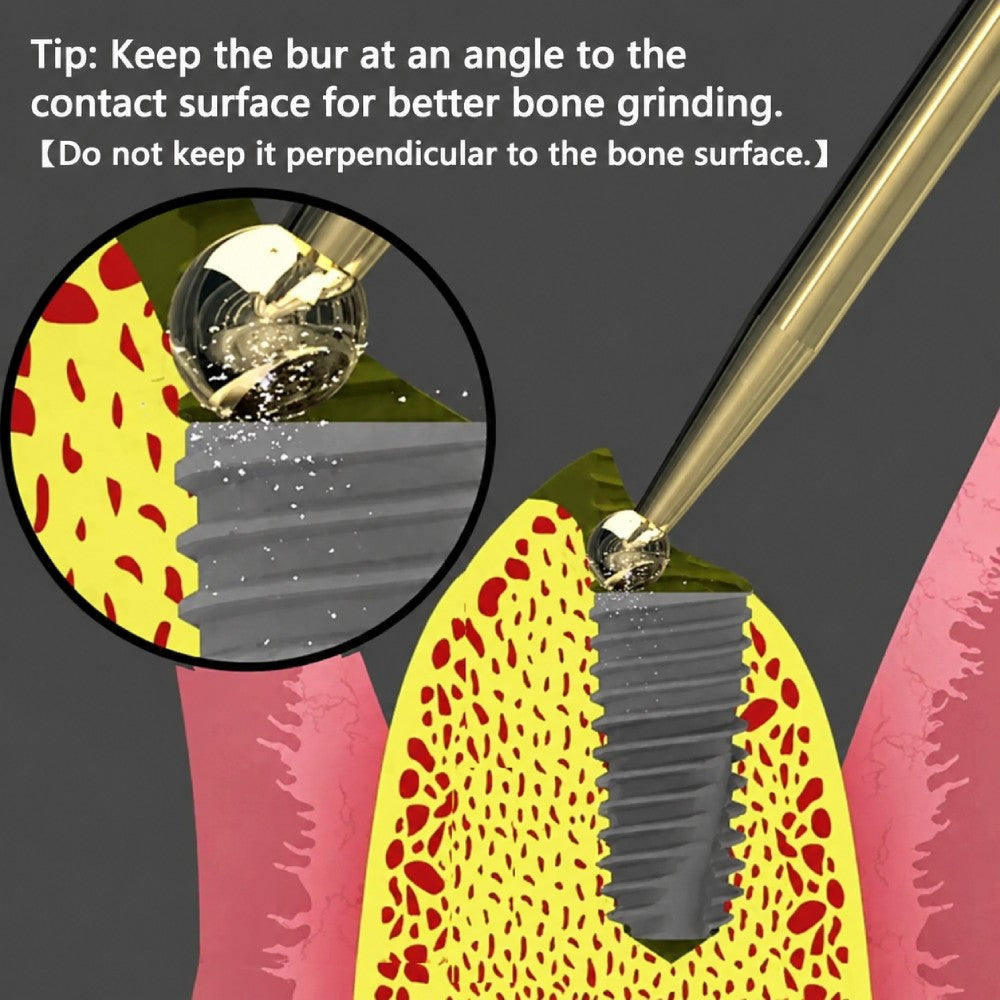

Due to the manufacturing characteristics of round burs, the cutting flutes at the very tip of the ball are relatively shallow, while the primary cutting edges are located around the sides of the spherical surface.
For optimal cutting efficiency:
Use the side of the ball to contact the bone.
Slightly tilt the bur during operation.
Avoid grinding with the very top of the ball head, as this significantly reduces cutting efficiency.
Using the bur at the correct angle allows for faster bone reduction and smoother contouring.
Why Choose Our Implant Bone Contouring Round Ball Bur?
One-piece stainless steel construction
Excellent cutting efficiency
Reduced fracture risk compared with welded burs
Multiple diameters and lengths available
Ideal for implant, periodontal, and oral surgery procedures
Designed to deliver precise bone reshaping and predictable surgical outcomes, the Implant Bone Contouring Round Ball Bur is an essential instrument for every implant surgeon's surgical kit
