SKU:TT311548
Implant Bone Harvesting & Bone Mill Kit
Implant Bone Harvesting & Bone Mill Kit
Regular price
$499.00 USD
Regular price
Sale price
$499.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Secure PayPal Payment
- 30 Days Money-back Guarantee
- Free Worldwide Shipping
Product Details
The Implant Bone Harvesting & Bone Mill Kit allows the collection of autogenous bone during osteotomy preparation, which can be used for bone grafting procedures. This eliminates the need for additional autogenous bone harvesting surgery and reduces the use of bone substitutes. It helps to simplify surgical steps and shorten overall surgery time.

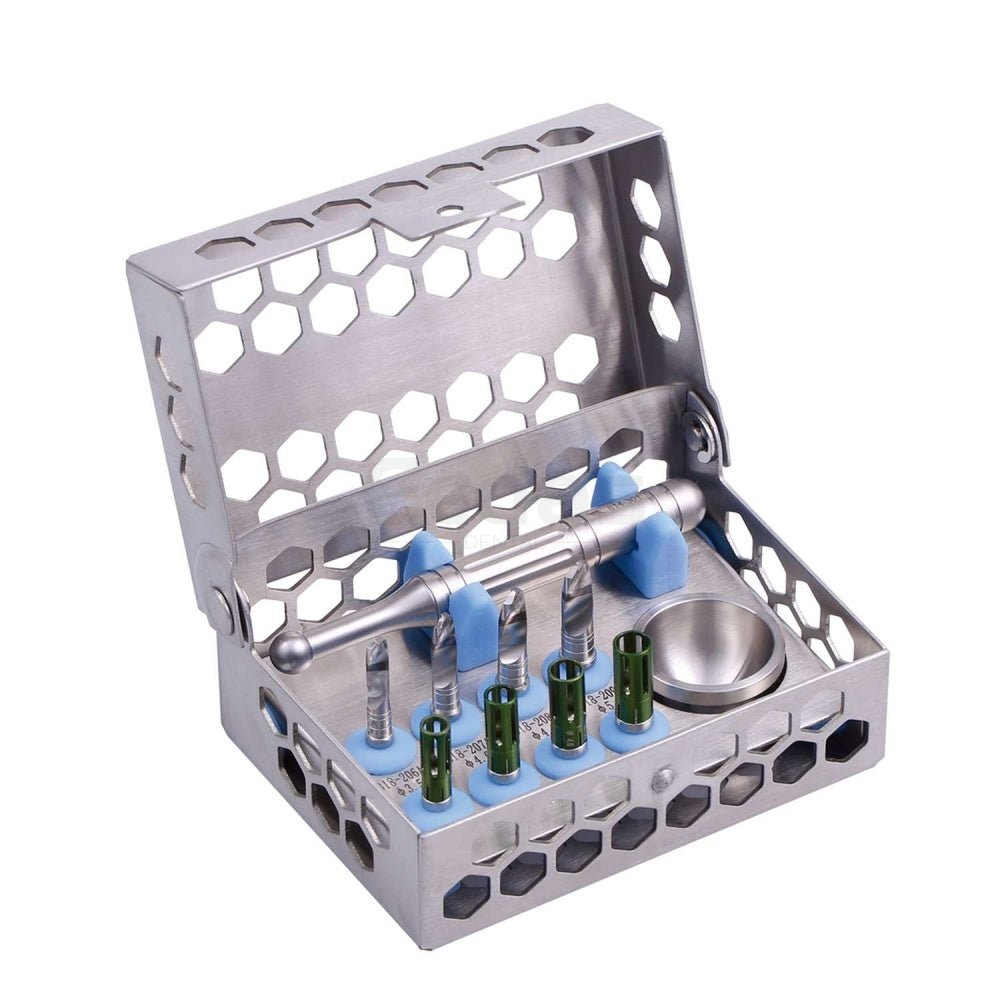

Kit Includes
| Component | Specifications / Diameter (mm) | Quantity / Notes |
|---|---|---|
| Implant Bone Collection Cup | 25 × 18 | 1 |

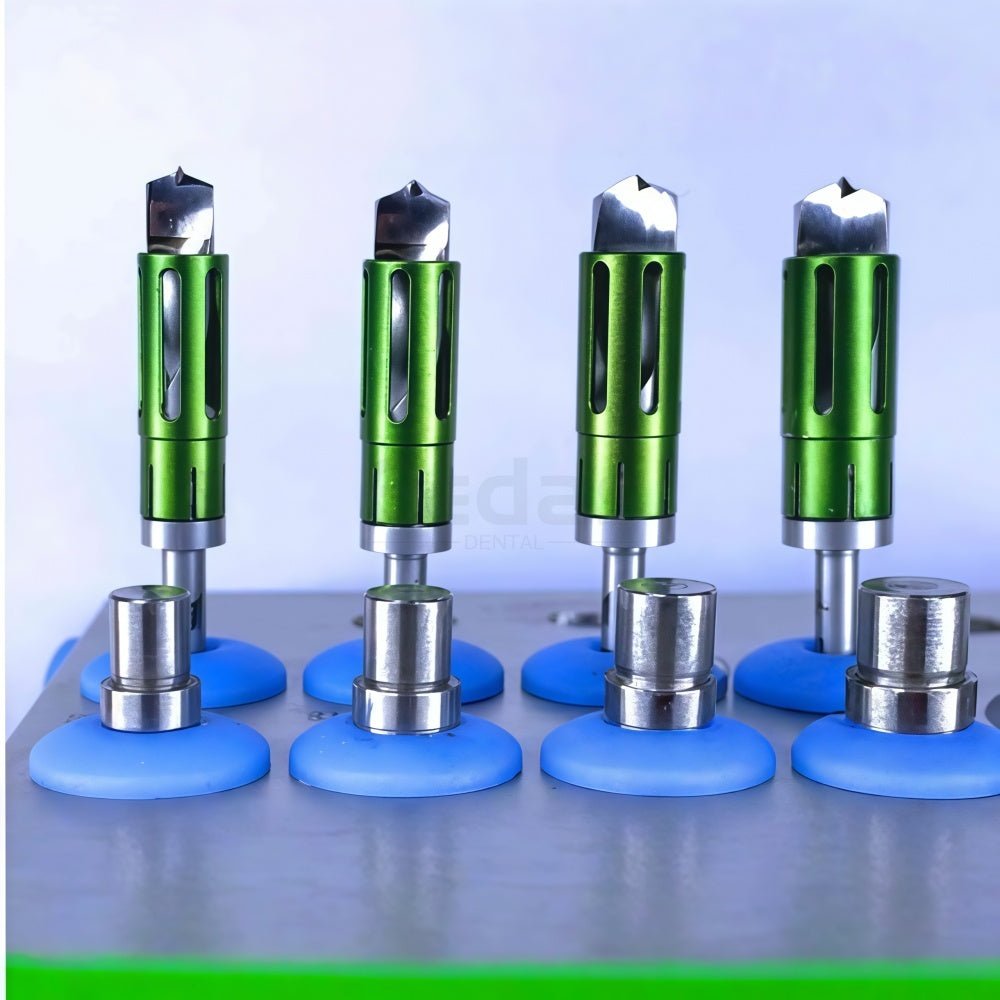

| Bone Harvesting Drill | 3.5, 4.0, 4.5, 5.0 | 4 drills |
| Protective Sleeve for Drill | 3.5, 4.0, 4.5, 5.0 | 4 sleeves |
| Bone Mill Pestle | — | 1 |

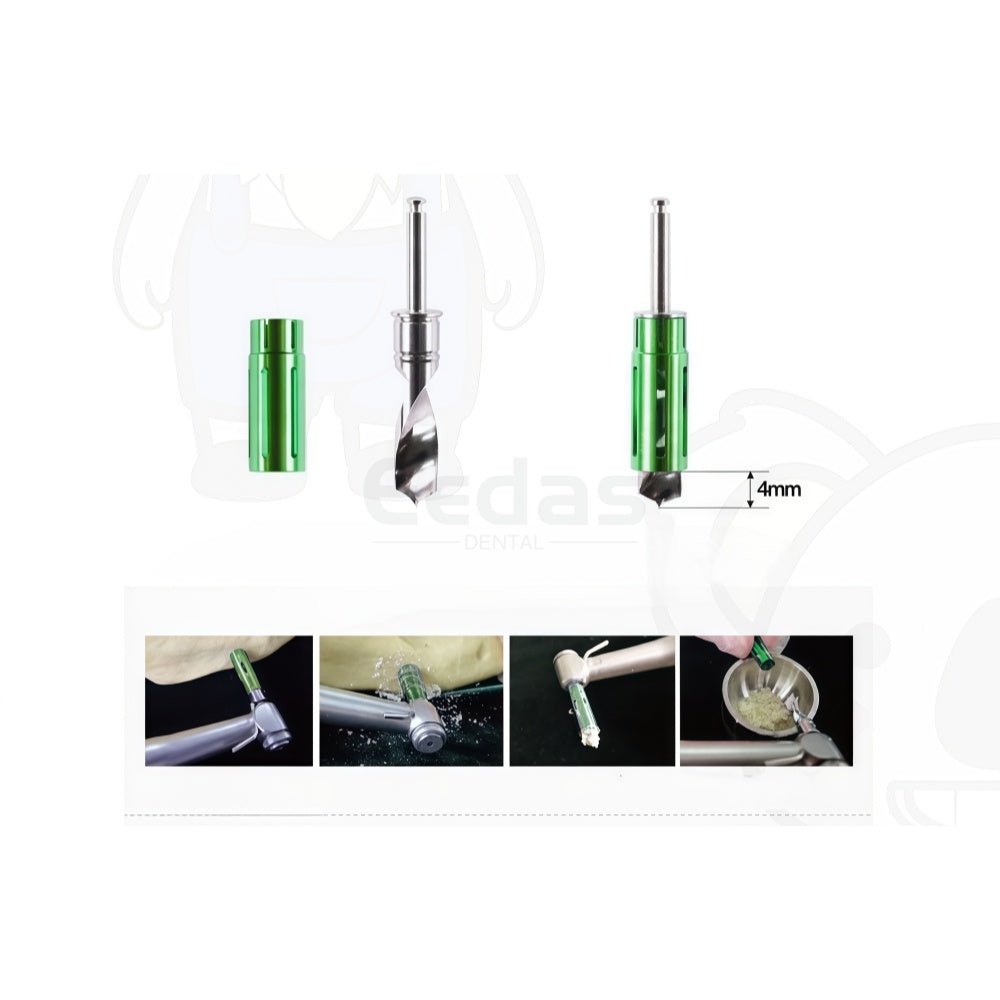

Operating Steps
- When starting bone harvesting with the bone harvesting drill, align the lower edge of the stop ring with the tip of the drill to obtain a sufficient amount of autogenous bone.
-
Begin bone harvesting.
-
Complete bone harvesting.
-
Remove the stop ring protective sleeve; a single harvest can yield a large amount of autogenous bone.
-
Place the harvested bone into the bone collection cup and crush it using the bone mill pestle.
- Use the resulting bone particles for grafting
